GC74

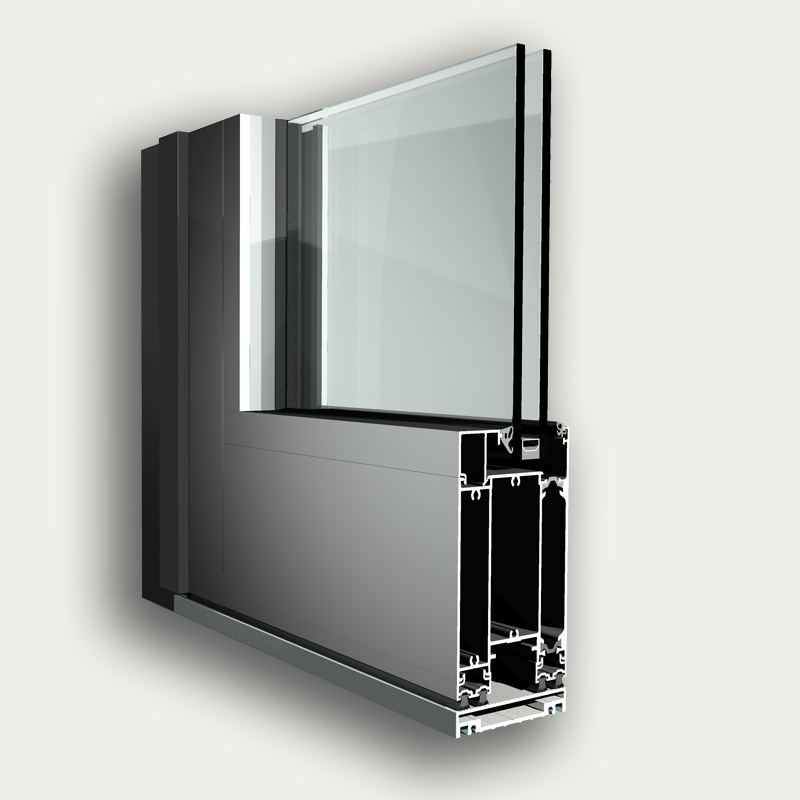

Pivot DoorHeavy Duty Pivot Door & Double Action Door. GC74 is an isolated hinged system suite to meet the requirements of modern buildings with large entrance or lobby doors. The system can carry up to 500 kg of sash without dimension limit for pivot doors and double action doors.
| Descriptions | Value | |
|---|---|---|
| Frame Depth: | 74 mm. | |
| Vent Depth: | 74 mm. | |
| Glass Thickness: | Up to 54 mm | |
| Rebate Height: | 22 mm | |
| Glazing Type: | Dry Galazing with EPDM | |
Technical performance:
Heavy Duty Pivot Door & Double Action Door. GC74 is an isolated hinged system suite to meet the requirements of modern buildings with large entrance or lobby doors. The system can carry up to 250 kg of sash without dimension limit for pivot doors and double action doors.
